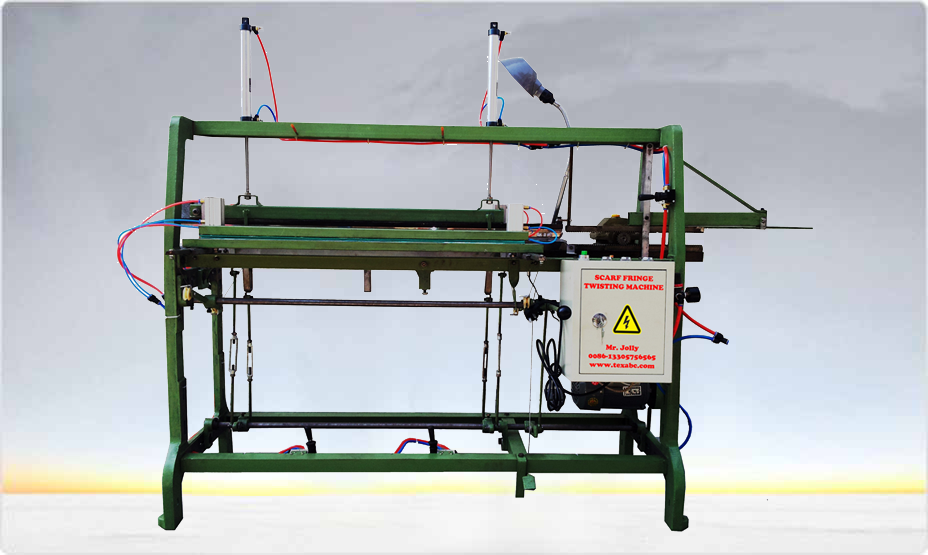

Scarf fringe twisting machine

PHOTOS
VIDEOS

Description

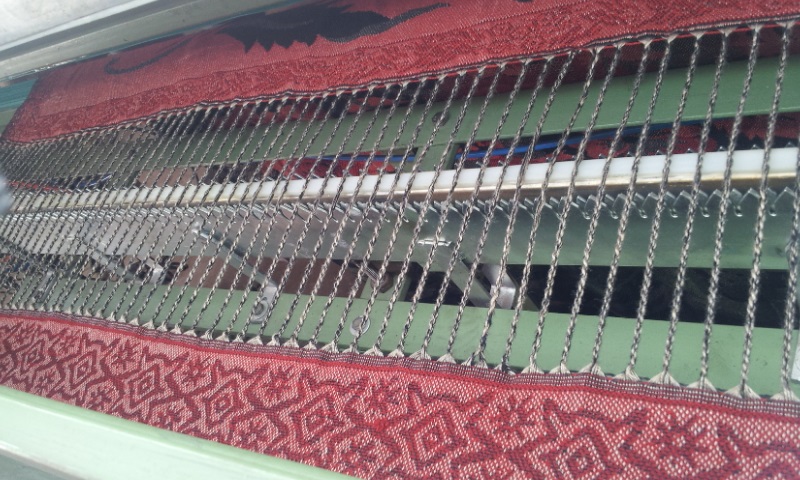

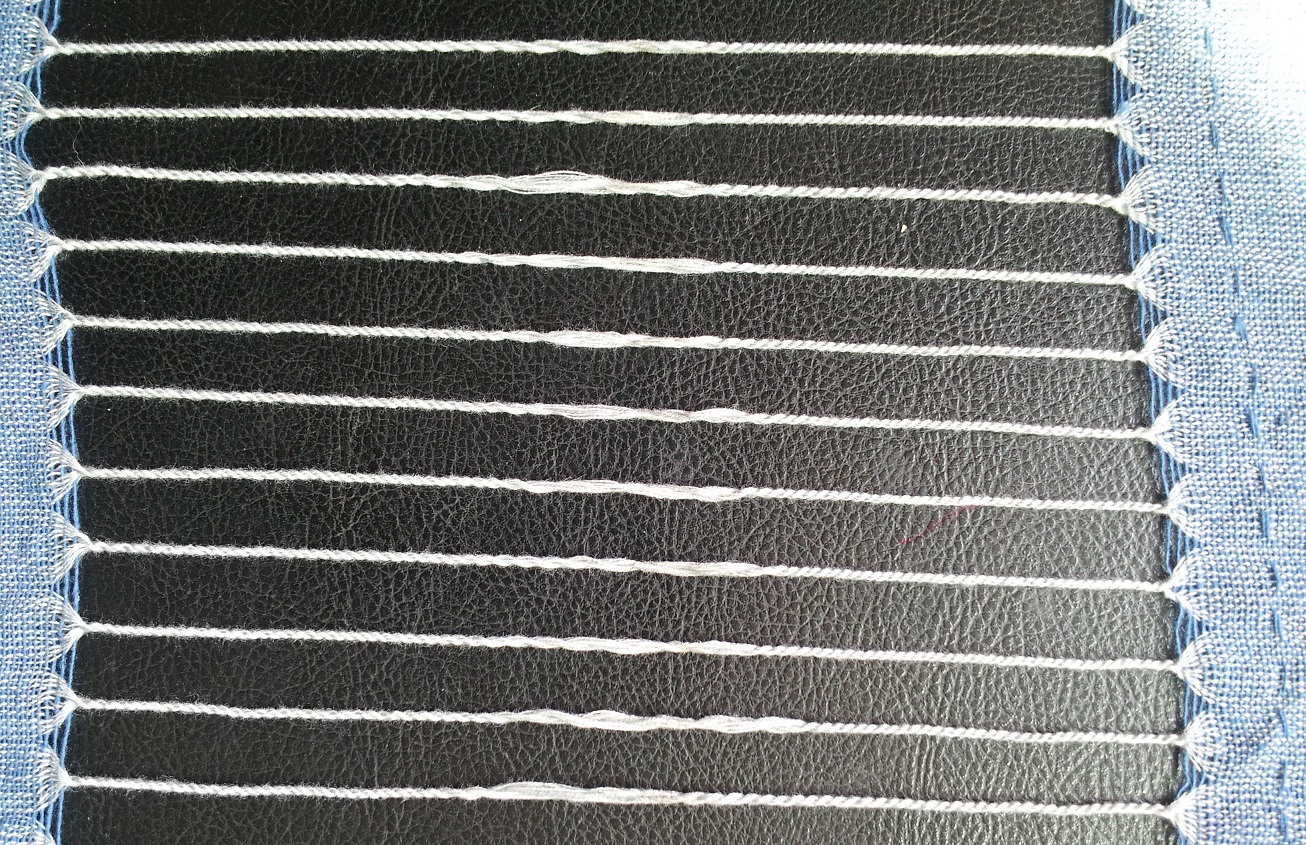

Scarf factories have been applying time-taking manual twisting, the twists from such process are not stable and uneven. Now factories have a new option of twisting by the scarf fringe twisting machine, which applys twice twists on the fringes, the first twist with the neighboring yarns as per fixed density devided by the teeth plates in one direction, the second twist with the two neighboring fringes in the reverse direction of the first twist, thus the fringes are in a stable twisted mode, and of same twist denisty. It sharply increases the productivity, and reduces labor requirements, as well as improves the twist quality.

In regular scarf process, factory applys this machine for twisting the fringes, and then factory worker inserts a thread in the center of the twisted fringes to prevent the twists from getting loose during the course of dyeing or washing process. If the scarf material is acrylic or polyster or nylon based, then factories can also apply melting measures to prevent possible loosing of twists after wash.

Specification

ITEM	PARAMETERS
Working Width	80cm,100cm,120cm,160cm,200cm,250cm
Working Speed	30-120 scarves/hour
Fringe Density	41,44,46,50,55,60,70 fringes/70cm
Fringe Length	230-260mm, tailor-making available
Driving method	motor + pneumatic switches
Dimension	0.8M3.2M1.38M(2M width)
