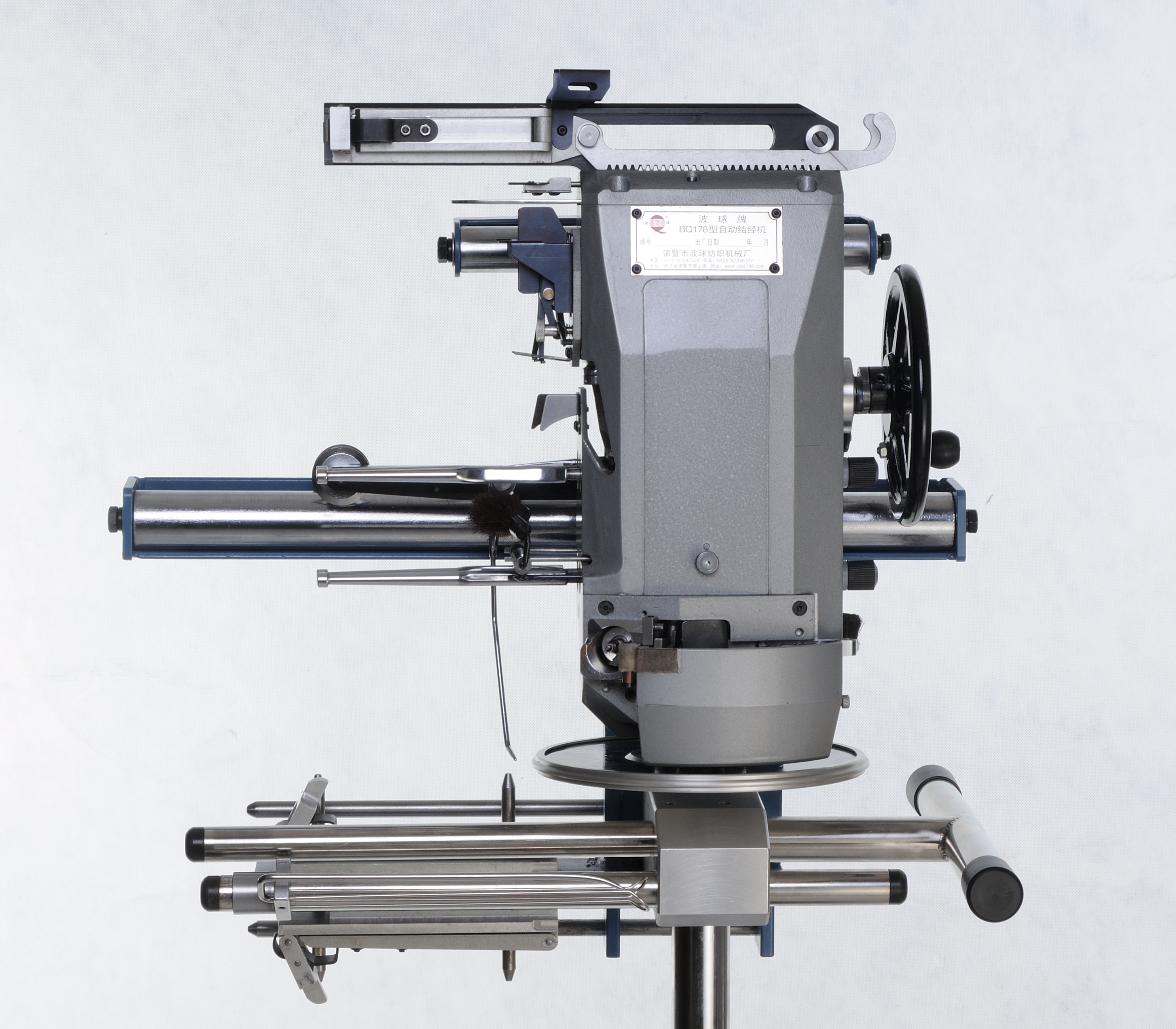

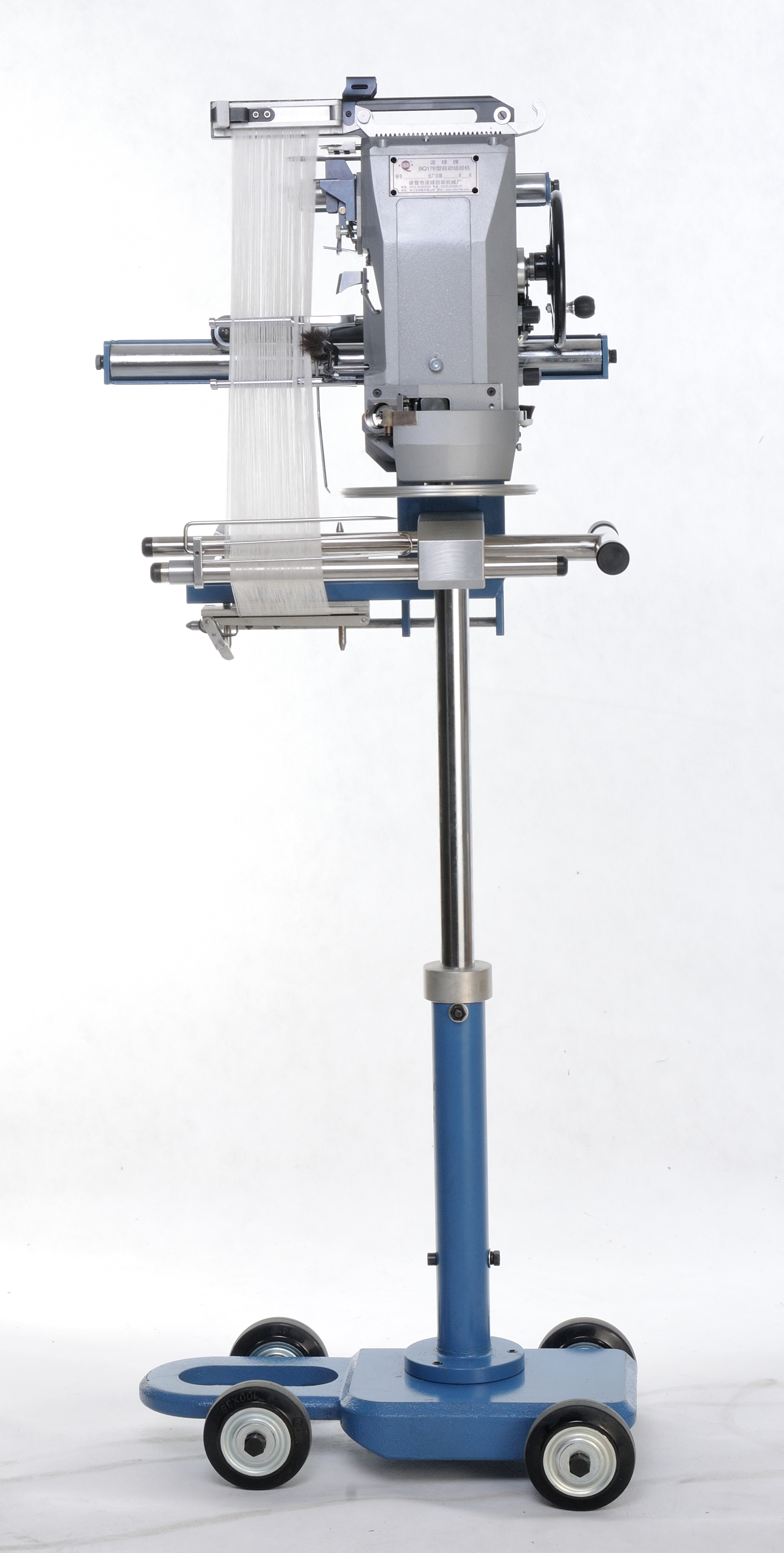

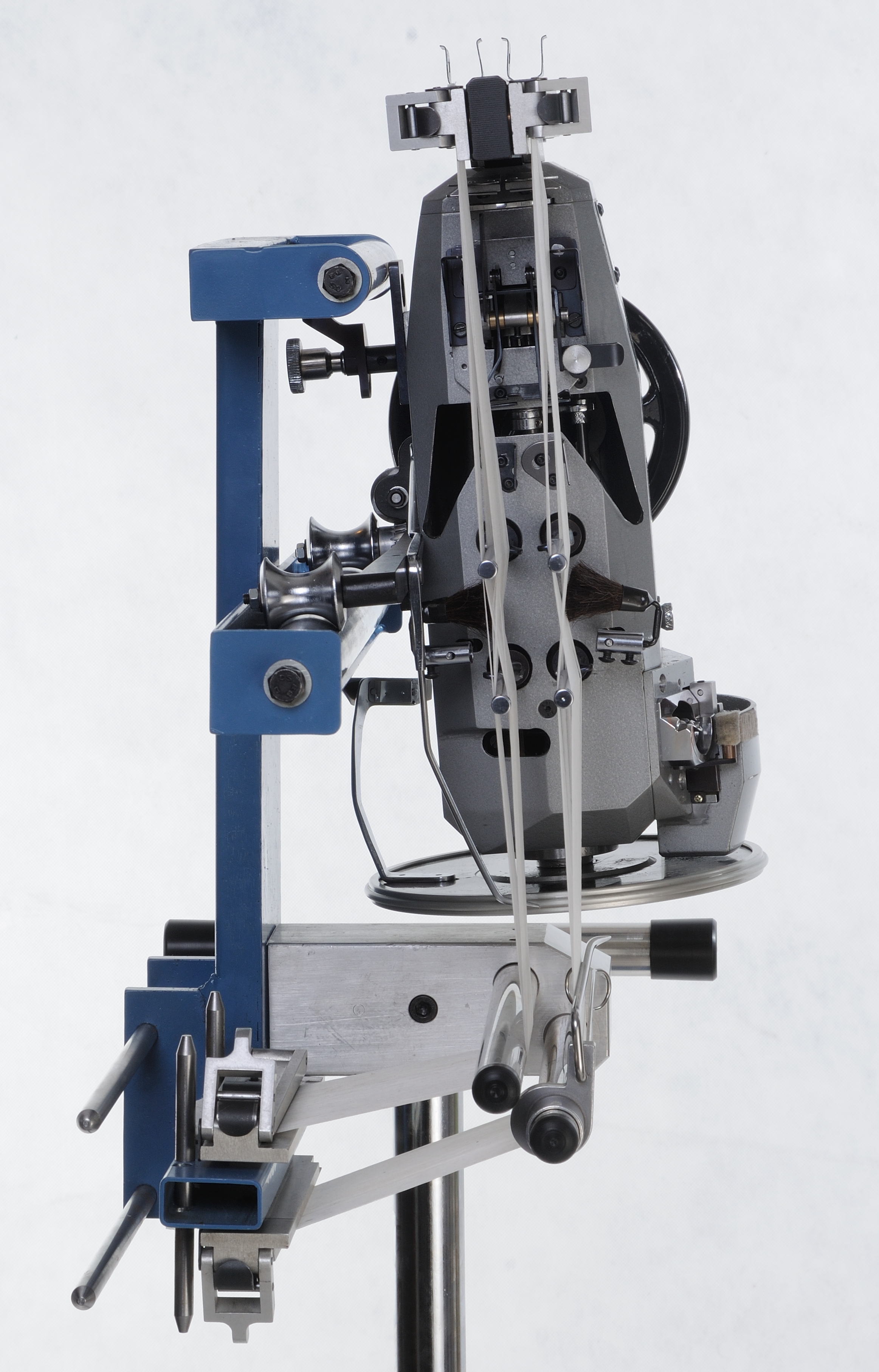

BQ178 Warp Knotting Machine

PHOTOS
VIDEOS

Description

Model BQ178 sectional warp knotting machine for label weaving machine is used to connect polyurethane or polyester yarns on label weaving beams, it adopts world-class knotting technology, and enjoys high performance, high efficiency, high flexibility and high quality, it is a latest knotting solution for label weaving industry.

Specification

MODEL	BQ178 NON STRETCH	BQ178 STRETCH
yarn range	30d-600d DTY, FDY, monofilament yarns	30d-600d DTY, FDY, monofilament, air covered spandex yarns
cramp width	3.5 inch max
knot type	double knot
working speed	60-360 knots per minute
stop control	stop on missing of either yarn
lease condition	warp yarn with lease
power supply	no need
machine specification	1170-1430mm510mm300mm
main machine	8kgs
stand	25kgs

Catalogue

download
